If

Type key: if_node
Group: Flow Control
Category: flow
Tier: CORE
Version: 1.1.0

The If node evaluates a condition against the current data and routes execution to either the True or False output branch. It is the primary tool for conditional branching in a workflow.

Handles

Handle	Direction	Color	Description
input	Input	—	Receives data from the preceding node
true	Output	Emerald	Path taken when the condition is satisfied
false	Output	Rose	Path taken when the condition is not satisfied

Configuration

Field	Type	Description
condition	object	A single condition definition
conditions	array	Array of condition objects (first one is used)

Condition Object

{
    "field": "status",
    "operator": "equals",
    "value": "completed",
    "datePart": null,
    "timeUnit": null
}

Property	Type	Description
field	string	Dot-notation path to the field (e.g. order.status, user.age)
operator	string	Comparison operator (see table below)
value	mixed	Value to compare against; supports {{tags}}
datePart	string	For date operators: year, month, day, hour, minute
timeUnit	string	For relative date operators: days, hours, minutes

Supported Operators

Operator	Description	Type-Aware
equals / =	Strict equality	✓
not_equals / !=	Not equal	✓
greater_than / >	Numeric greater than	✓
less_than / <	Numeric less than	✓
greater_than_or_equal / >=	Numeric GTE	✓
less_than_or_equal / <=	Numeric LTE	✓
contains	String contains substring	—
not_contains	String does not contain	—
starts_with	String starts with	—
ends_with	String ends with	—
is_empty	Value is null/empty string/empty array	—
is_not_empty	Value is not empty	—
in	Value is in a comma-separated list	—
not_in	Value is not in list	—
is_null	Value is null	—
is_not_null	Value is not null	—
date_equals	Date field equals a date	✓ Date
date_after	Date field is after a date	✓ Date
date_before	Date field is before a date	✓ Date
date_within_last	Date is within last N time units	✓ Date

Type-Aware: The system automatically infers whether to compare as integer, float, string, boolean, or datetime based on the actual value at runtime.

Behavior

1. The node reads $context->input and extracts the field value using dot notation
2. Compares the extracted value against the configured value using the selected operator
3. If the condition is true, data flows through the true output handle
4. If the condition is false, data flows through the false output handle
5. The original input data is passed unchanged through whichever branch is taken

Examples

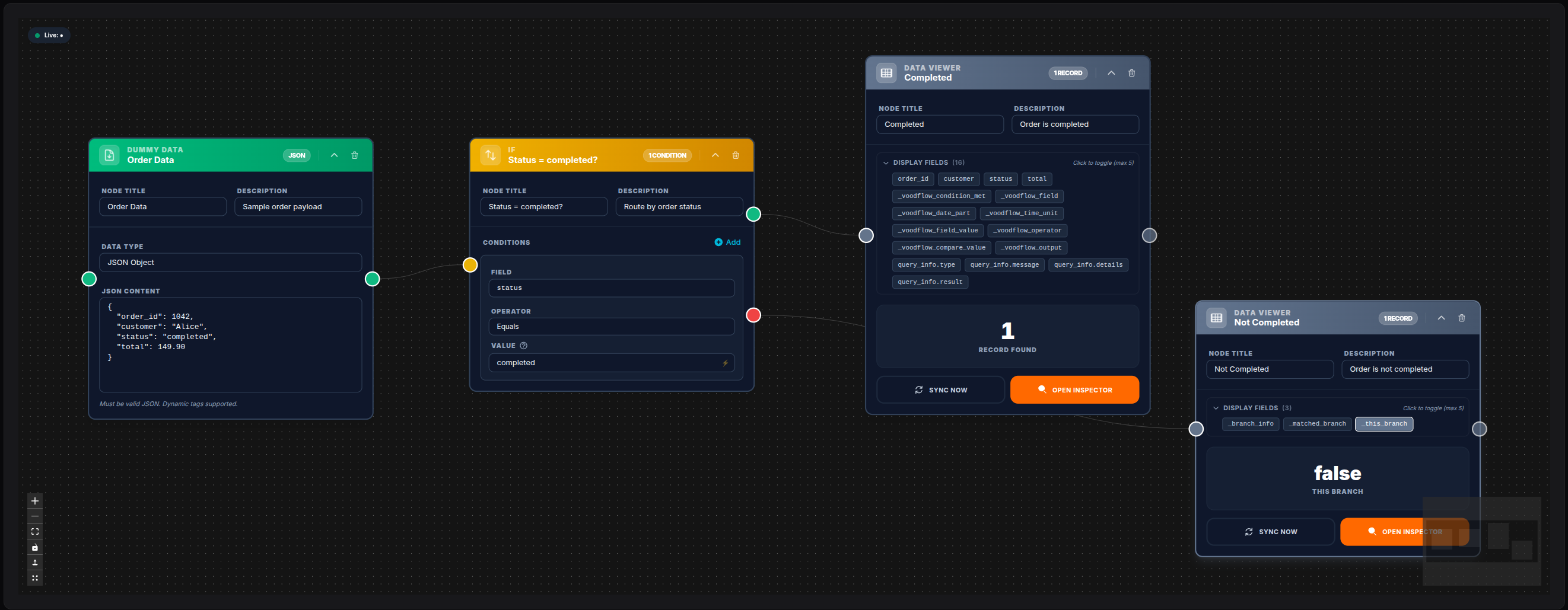

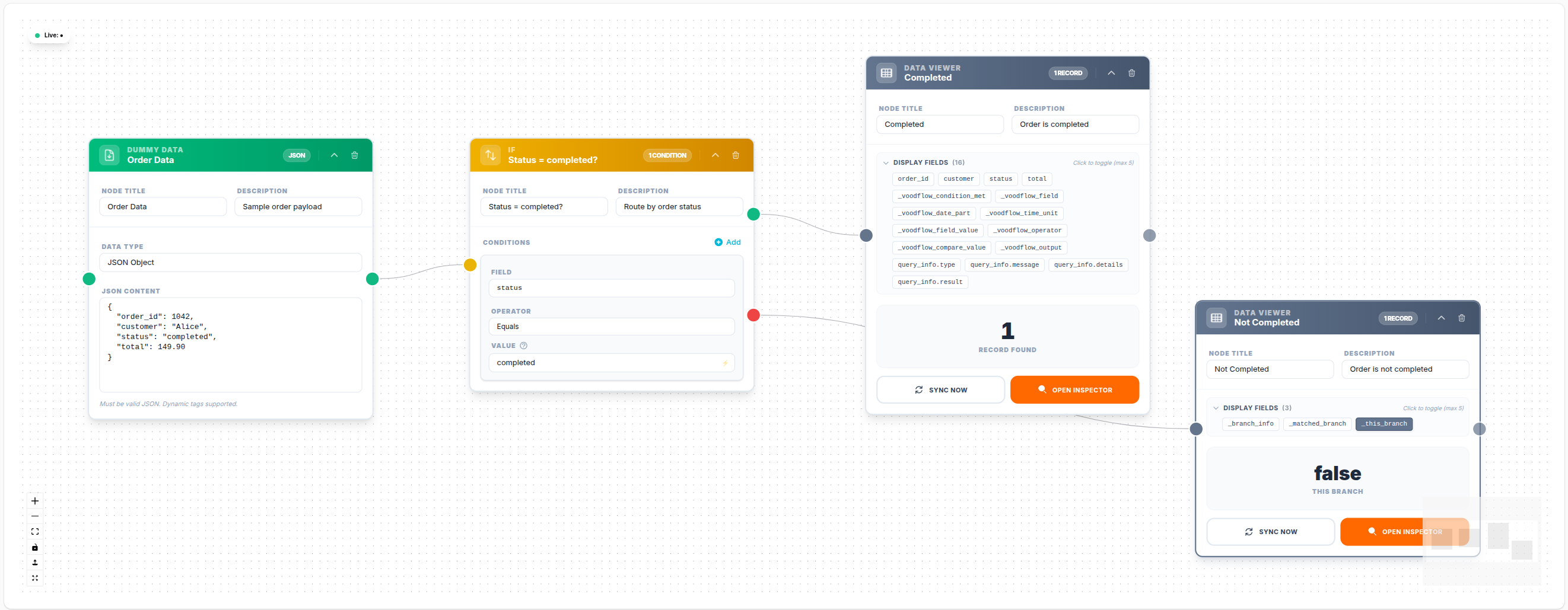

Route by Order Status

Field:    status
Operator: equals
Value:    completed

→ true branch if input.status === "completed"

💾 Try this example

Download the workflow JSON — open an empty workflow and import the file.

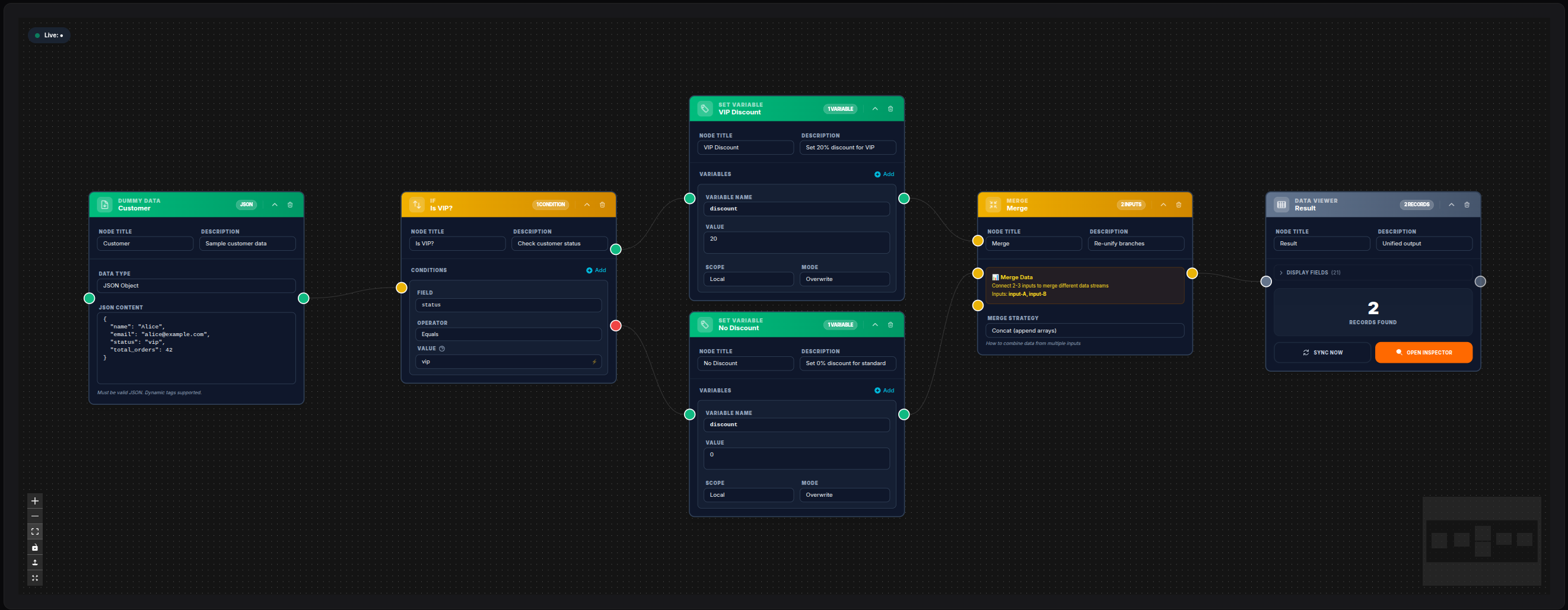

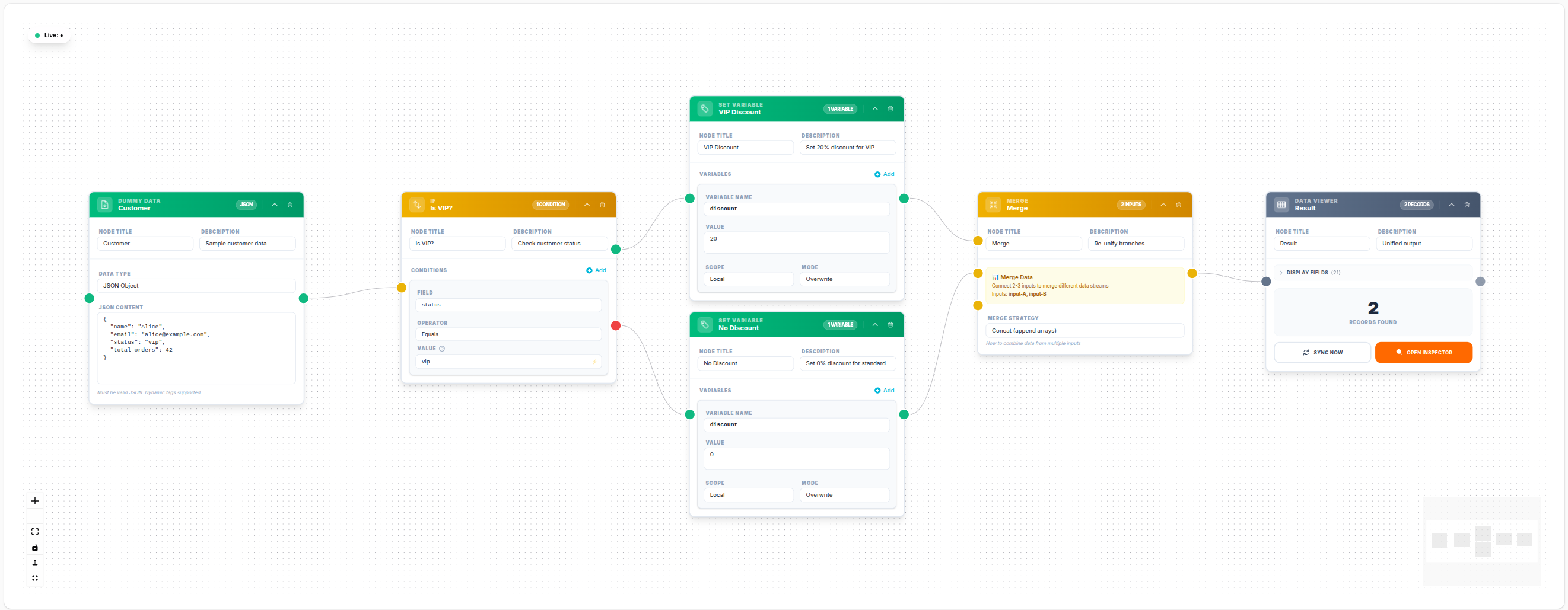

Reunify branches with Merge

After an If splits the flow, a Merge node can join the true and false paths so downstream nodes run once with whichever branch fired.

💾 Try this example

Download the workflow JSON — open an empty workflow and import the file.

Check Numeric Threshold

Field:    total
Operator: greater_than
Value:    1000

→ true branch if input.total > 1000

Dynamic Value from Previous Node

Field:    score
Operator: greater_than_or_equal
Value:    {{variables.min_score_threshold}}

→ Compares input.score against a workflow variable

Date Freshness Check

Field:    created_at
Operator: date_within_last
Value:    7
timeUnit: days

→ true if the record was created within the last 7 days

Notes

• Both output branches can have their own downstream nodes. You do not need to connect both — unconnected branches simply terminate.
• The If node passes all input data unchanged through the activated branch. It does not modify data.
• For more than two branches, use the Switch node.
